PULS Power 500W IP Rated FIEPOS Industrial Power Supply

by ·

Waterproof, reliable, durable, flexible, decentralised power supplies with virtually limitless applications such as intralogistics, factory automation, industrial control, conveyor systems, materials handling, storage technology, robotics and railway systems.

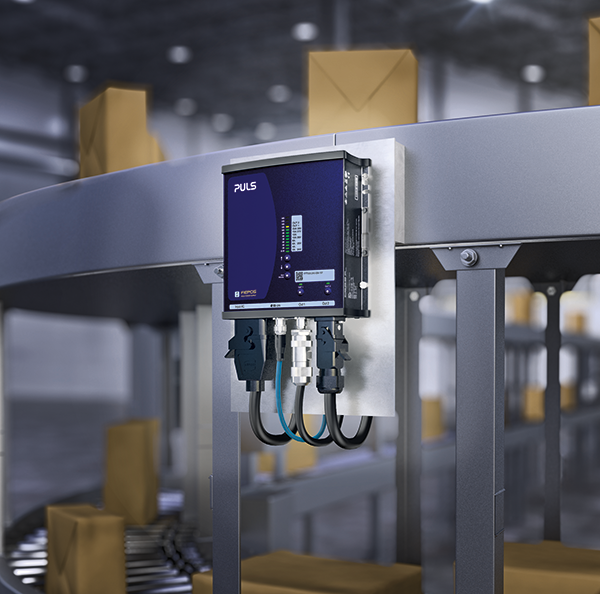

FIEPOS rugged, waterproof power supplies from PULS Power feature local or IO-Link control and are an ideal solution for decentralised electrical and electronic systems. FIEPOS may be installed with no additional enclosure and is available with IP54, IP65 or IP67 for reliable protection against ingress of dust and water.

Removing the power supply (decentralisation) from shared enclosures saves space, reduces internal heat dissipation and allows the power supply to be conveniently located on an internal cabinet wall or DIN-Rail. Decentralisation of system components simplifies installation, enables expansion and reformatting of systems, and simplifies maintenance. In addition, conventional control cabinets can be replaced by smaller versions or even removed completely.

Two versions of the high efficiency (> 95%) PULS FIEPOS are available both offering either 360W or 600W power output. The output voltage and the current-limited outputs (eFused series) can be monitored and set directly via the LED interface and the push buttons on the front of the device or remotely via IO-Link.

  • 1 – The high-power single 24 – 28VDC output Basic Series FIEPOS can be connected in parallel with additional units to increase total output power. FIEPOS Basic can also be connected in an N+1 redundant system using integrated high efficiency MOSFET decoupling (Oring).
  • 2 – The eFused series which may be specified with up to 4 current-limited DC outputs and may be configured for NEC Class 2 circuits. This power supply simplifies the implementation of selective power distribution, protection and monitoring directly in the field. The eFused series is a space-saving power supply system featuring integrated current-limited outputs and is a real alternative to a power supply unit with an external electronic protection module. Special features include staggered output activation, protection of sensitive loads through prioritised outputs and selective shutdown in the event of a fault.

FIEPOS is available with input voltage ranges 1-phase 85 – 264V, 1-phase 170 – 264V, 3-phase 320 – 550V, output voltage from 24 – 28VDC, output power 360W or 600W, efficiency > 95%, an operating temperature range from -25 °C to +55 °C without any loss of performance and has dimensions (WxHxD) of 181 x 183 x 57mm.

For more information on PULS FIEPOS click here or call +44 1525 841001, email sales@puls.co.uk or visit www.pulspower.com
